PerfectPatch
Installation Tips |

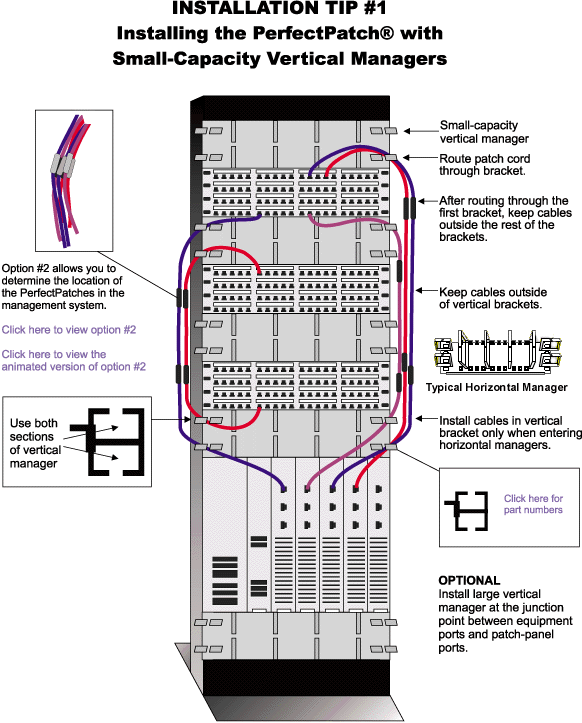

| Installation Tip #1
Installing the PerfectPatch
with Small-Capacity Vertical Managers |

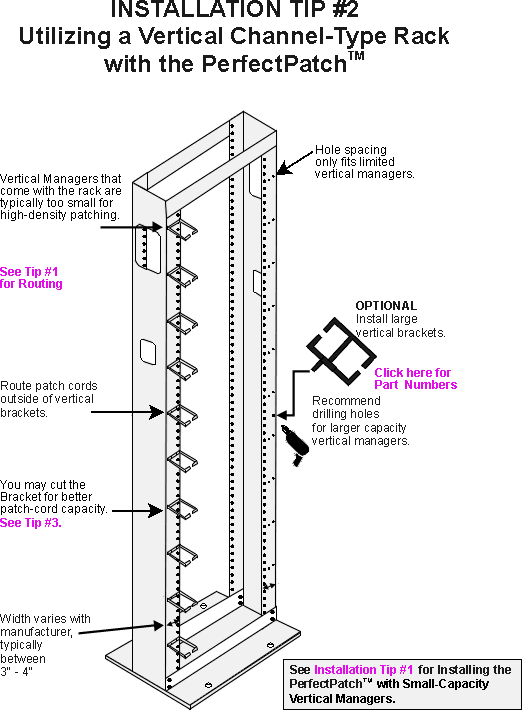

| Installation
Tip #2 Utilizing A Vertical Channel-Type Rack with the PerfectPatch |

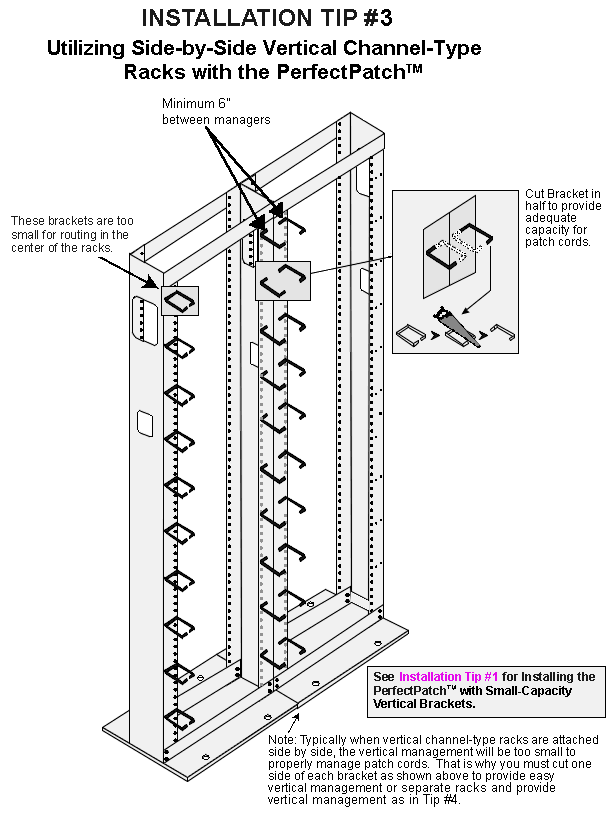

| Installation
Tip #3 Utilizing Side-By-Side Vertical Channel-Type Racks with the PerfectPatch
|

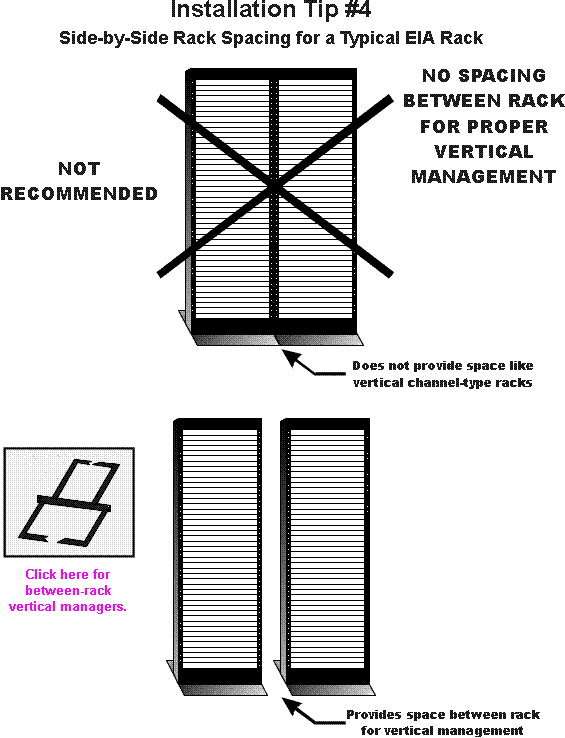

| Installation Tip #4 Side-by-Side Rack Spacing for a Typical EIA Rack |

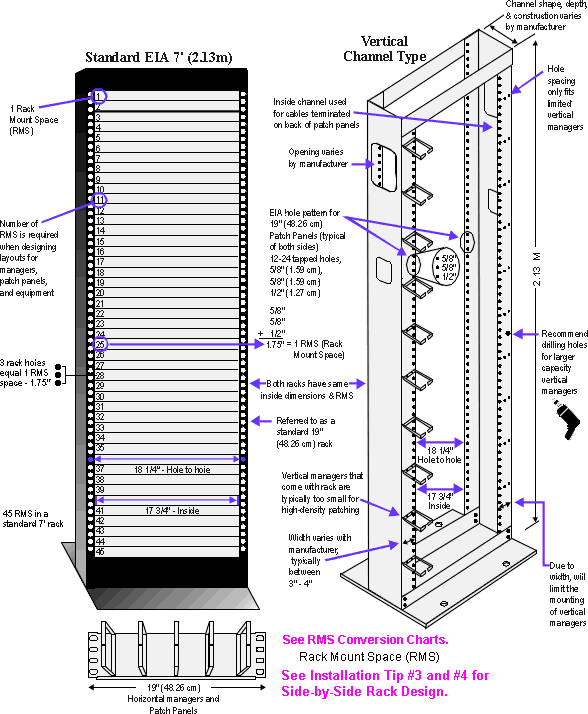

| Simple Patch-Cord
Management Guidelines - Racks |
 |
 |
 |
 |
 |
|
