Management Performance Level Matrix
This matrix was designed to be cut out and attached to your rack for guidance now, and in the future.

For more information on the Management Performance Level Matrix,
click here for Frequently Asked Questions About Patch-Cord Management, #4, #8, and #10.

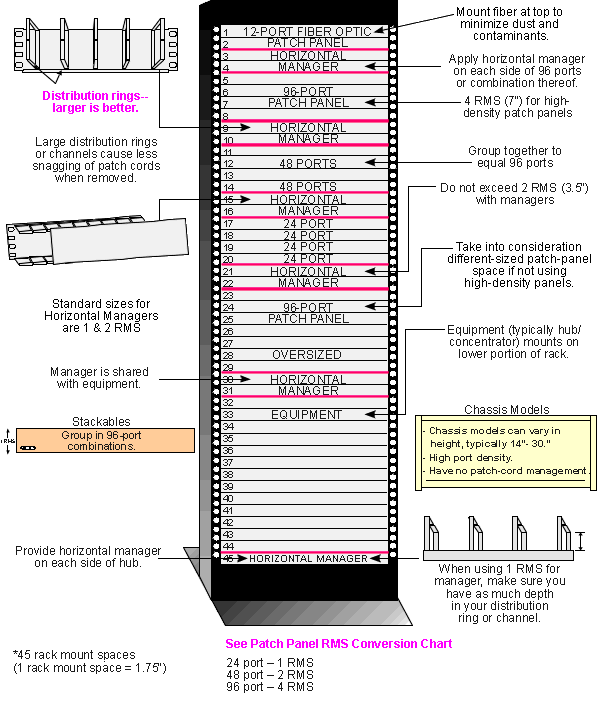

Simple Patch-Cord Management Guidelines - Horizontal

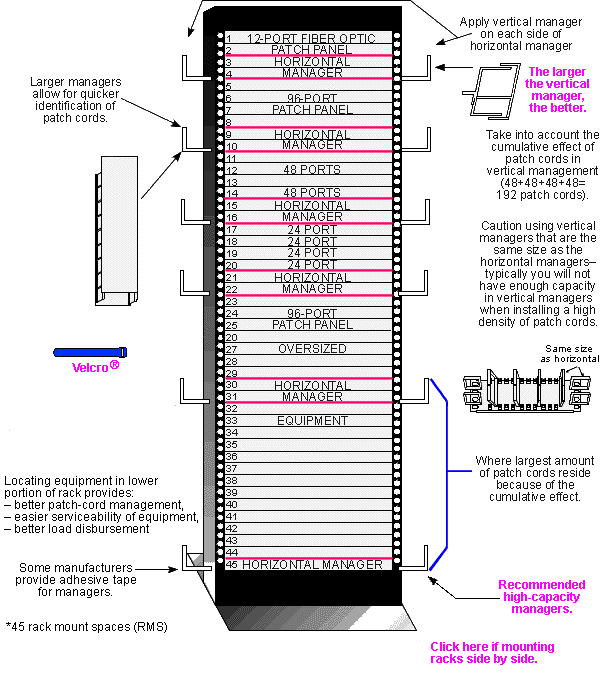

Simple Patch-Cord Management Guidelines - Vertical
Click on purple text in illustration for further information on that subject.

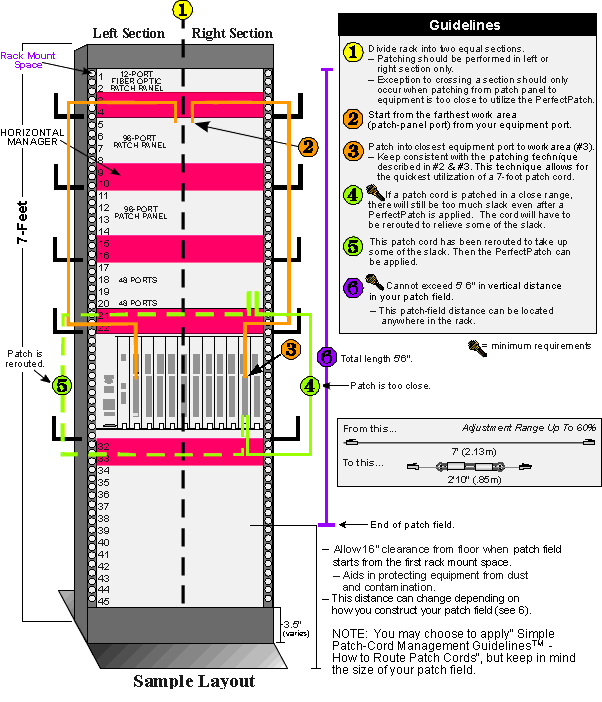

Utilizing All 7-Foot Patch Cords in Your Management System
Click on purple text in illustration for further information on that subject.

Simple Patch-Cord Management Guidelines - Racks
Click on purple text in illustration for further information on that subject.

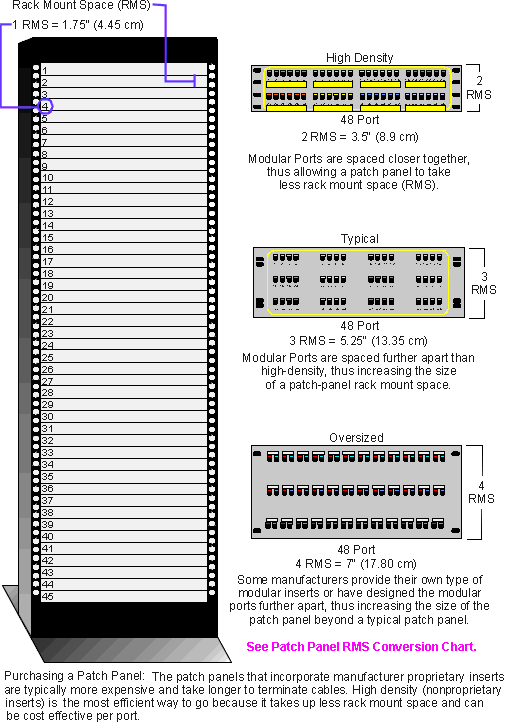

Simple Patch-Cord Management Guidelines - Patch Panel Sizes

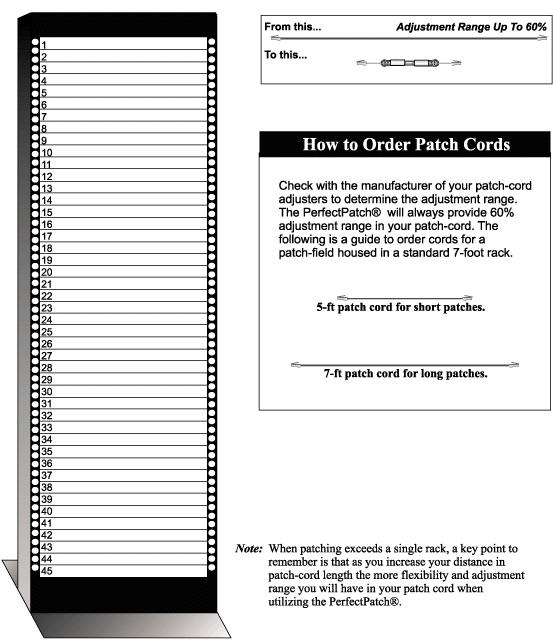

Simple Patch-Cord Management Guidelines - How to Order Patch Cords

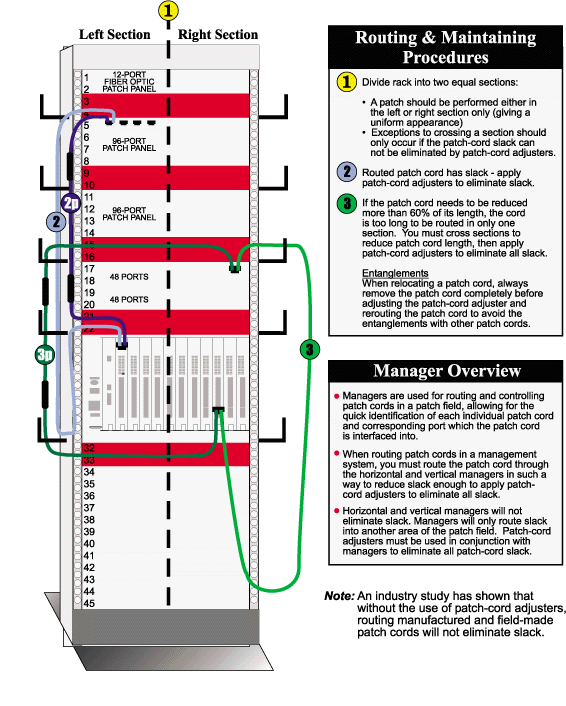

Simple Patch-Cord Management Guidelines -
How to Maintain and Route Patch Cords

RMS CONVERSION CHART
RMS	IN	CM
1	1.75	4.45
2	3.50	8.90
3	5.25	13.35
4	7.00	17.90
5	8.75	22.25
6	10.50	26.70
7	12.25	31.15

PATCH PANEL RMS CONVERSION CHART
RJ-45 (8-pin Modular) No. of Ports per Patch Panel	High-Density Height	Normal Height	Oversized
16	1 RMS	2 RMS	varies
24	*1 RMS	2 RMS	3 RMS
32	2 RMS	3 RMS	varies
48	*2 RMS	3 RMS	4 RMS
96	*4 RMS	6 RMS	7 RMS
120	5 RMS	varies	varies

Note: 3 rack hole spaces = 1 RMS

*Recommended type and size - typically in-stock with major manufacturers.

High-density height is consistent between manufacturers.
Normal and oversized heights may vary between manufacturers.

Although the PerfectPatch

should work in any vertical management system, an industry study has pointed out that installing larger-capacity vertical managers allows for less restriction of patch cords, prompting faster identification and easier patch-cord management. That is why PerfectPatch, Inc., has reviewed some manufacturers' products and provided a list for your review.

Manufacturers: If you are interested in supplying PerfectPatch, Inc., with a sample of your high-capacity vertical managers for our review, please click here.

Installer/End Users: If you are aware of any vertical manager products that have high capacity or if you have questions regarding our recommendations, please click here.

Product Diagram	Manufacturer	Part Number
	Leviton	#49260-MR6
	Hubbell 2 per pack	#MCCVMR2
	Homaco Homaco	#VCB-93-6U #VCB-93-6UH
	Ortronics	#OR-40600042
	Siemon	#S146-ask about Adhesive Tape that comes with S-145.
	Panduit	WMBC Used in- between racks.
	MOD-TAP	25.B0434 Used in- between racks.
